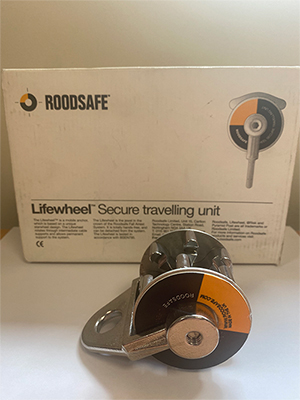

Roodsafe Standard Lifewheel

Roodsafe’s standard lifewheel is made specifically to offer a higher level of safety to the user. The lifewheel attaches directly to the Roodsafe 8mm cable based fall arrest system and allows for the user to run freely for the length of the system and not have to use a twin lanyard to move between intermediate sections and around corners.

​

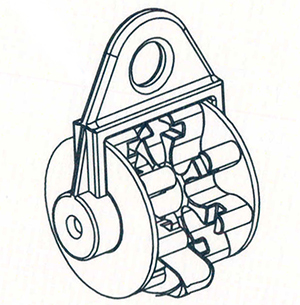

RS10 - Lifewheel Standard

Materials

All cast components- Stainless Steel 17/4 PH

Starwheel- Nylon 6

Axle Pin- Stainless Steel A4/80

All other steel components 316S Stainless Steel.

Loadings

Ultimate Load- 40kN

Quality Control

1. Assembly checked for free running.

Notes

1. The standard Lifewheel should not be used on inclined systems above 15° or vertical systems

2. Only one person to be attached to the Lifewheel.

3. Only 8mm (5/16”) 7x7 or 1x19 construction stainless steel cable falling in the limits of 7.92mm to 8.32mm (0.312in to 0.327in) should be used
