Davit Arms
Details
APPLICATIONS
Single rider abseil system for reach over challenging obstacles in the work area
PERFORMANCE
Providing outreach lengths of 1M and 1.5M,
the Davit arm is rated for a single rider at
up to 120Kg.
Davit arms are manufacturer tested to an
ultimate load of 15kN
DESIGN
Davit arms are designed to be easy to
disassemble and can be carried by one
person for storage between uses to provide a
clutter free rooftop.
COMMISSIONING
FIXTURES
& FITTINGS
Davit bases are typically mounted to the roof
with four M16 bolts
Davits are supplied with safety retention pins
to provide quick and simple assembly while
still maintaining the same high level of safety
Product Overview
Davit systems are a universal, highly customisable and cost effective
way to ensure on demand roof access in a safe and convenient manner
Product overview continued
Davit systems feature multiple different heights and outreach options
as well a range of bases to fit all applications and environments
Removable davit arms combined with inset and coverable bases allow for
a clean and clutter free working area when not in use, a feature that is
critical with warm-roofs, green roofs and publicly accessible balconies
TECHNICAL DATA SHEET

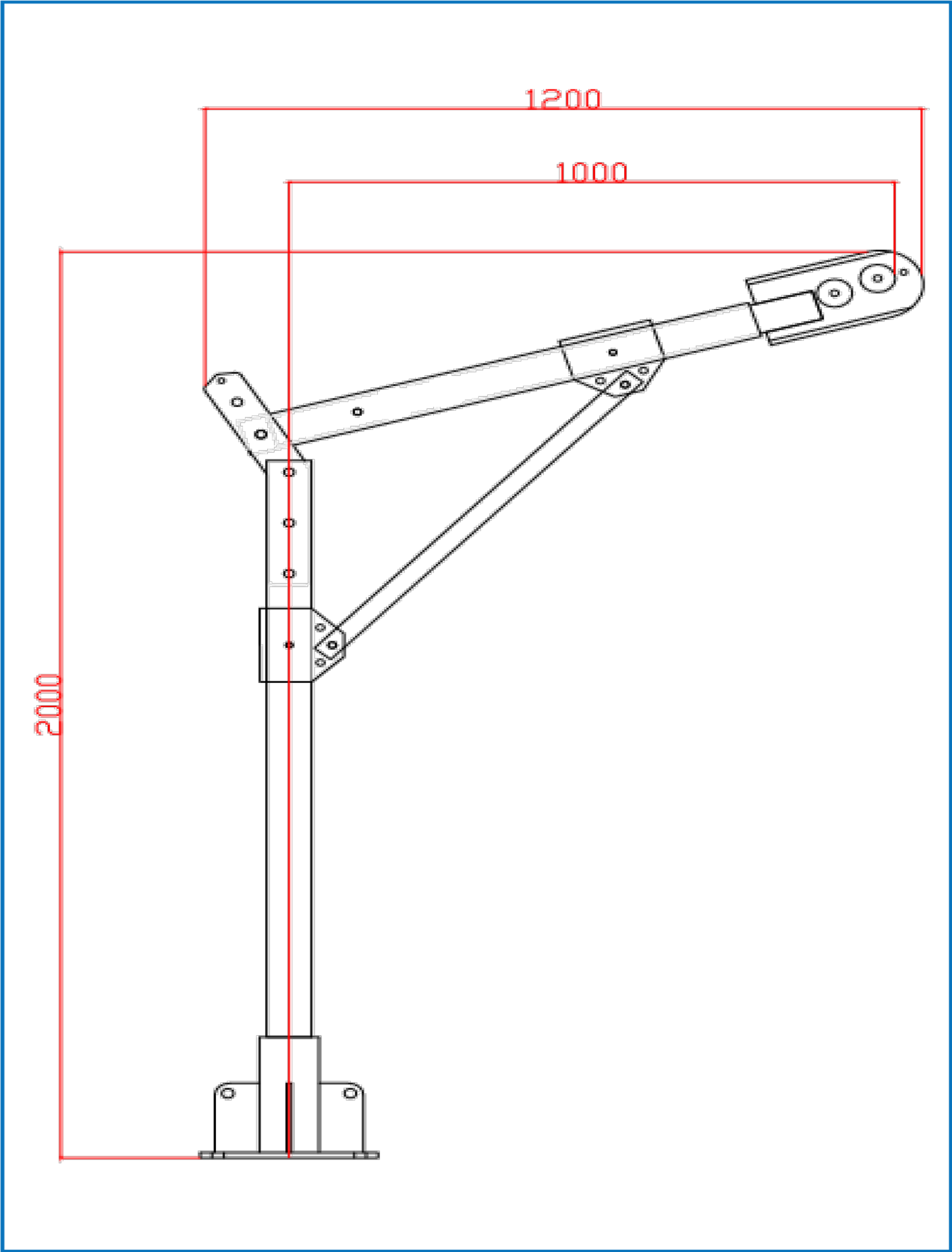

Description: 1M Davit arm
General Dimensions:
2m to highest point
1.2m front to back
Reach:
1m from centre of base to cable roller
Load capacity:
Nominal operating load of 120Kg
Testing:
All davit arms are tested to a force of 15kN
Material:
Grade 304 Stainless Steel for base, end boom
section and fixings, aluminium tube for main
boom and body.
Finish:
Natural Stainless Steel for base /
Powder coating for the rest of the part.
TECHNICAL
DATA SHEET

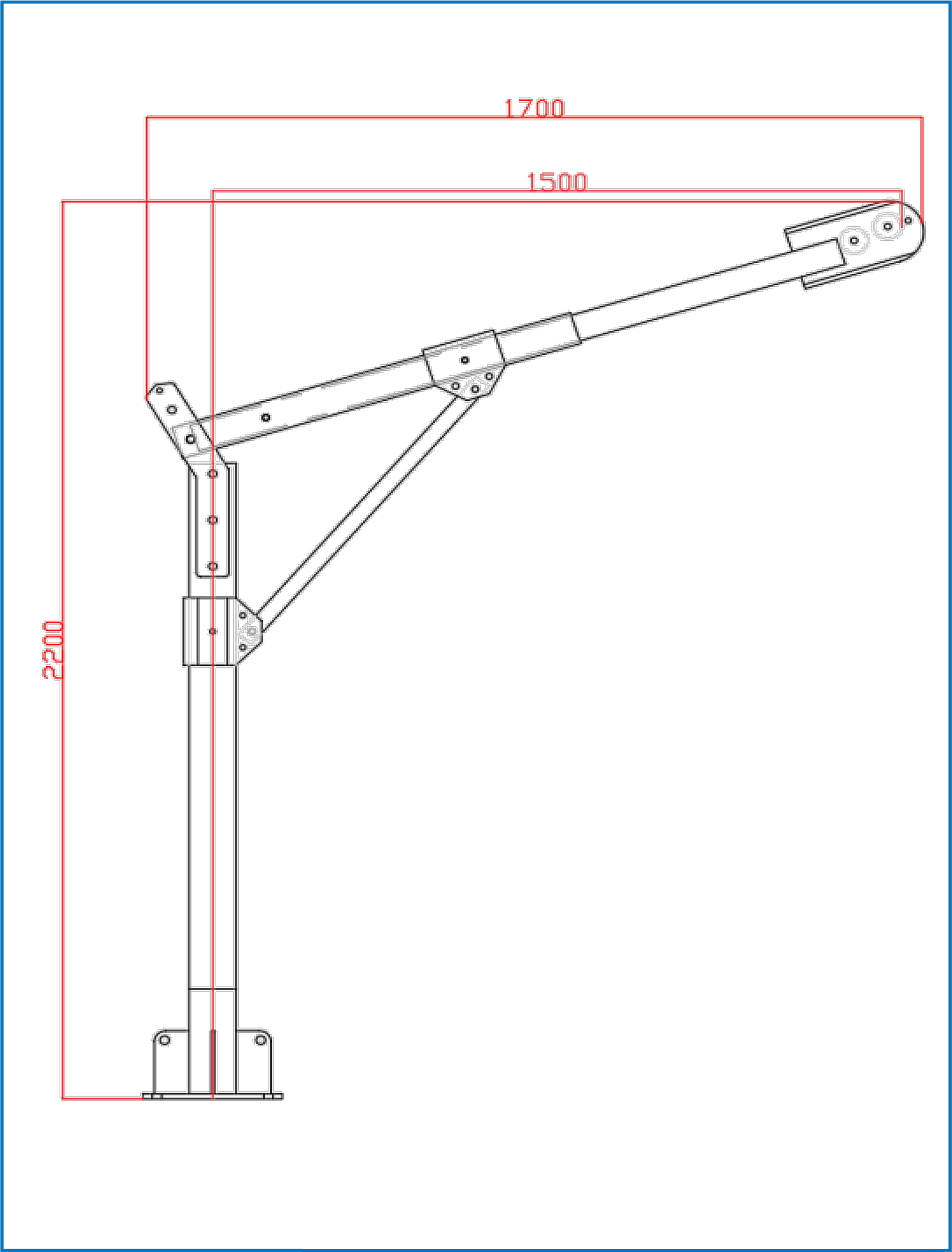

Description: 1.5M Davit Arm
General Dimensions:
2.2m to tallest point
1.7m front to back
Reach:
1.5m from centre of base to cable roller
Load capacity:
Nominal operating load of 120Kg
Testing:
All davit arms are tested to a force of 15kN
Material:
Grade 304 Stainless Steel for base, end
boom section and fixings, aluminium tube
for main boom and body.
Finish:
Natural Stainless Steel for base / Powder
coating for the rest of the part.

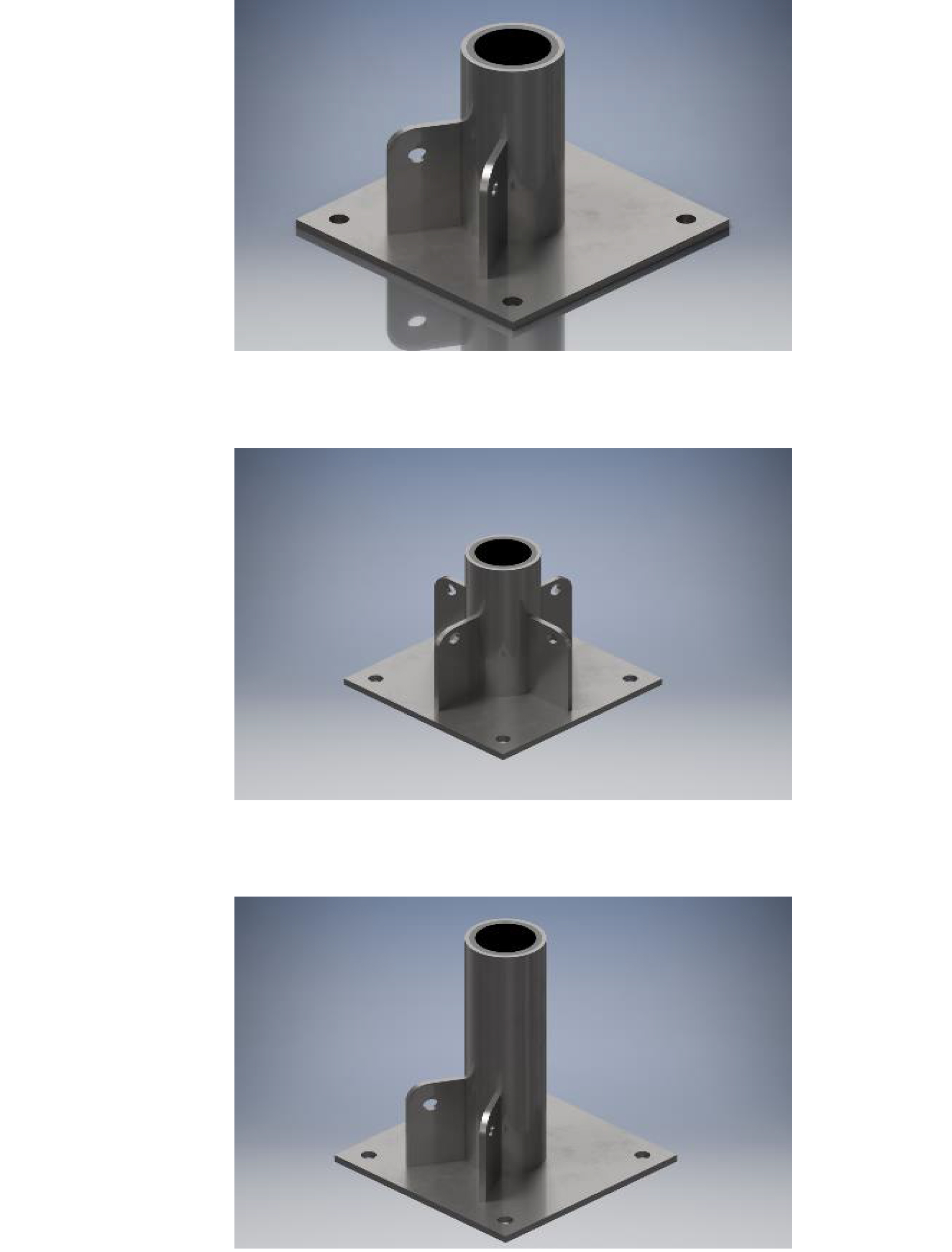

BASES
2 Gusset 250 Base
General dimensions:
300x300mm base
262mm tall
Fits 250mm Spigot davit systems
2 cable attachment gussets
4 Gusset 250 Base
General dimensions:
300x300mm base
262mm tall
Fits 250mm Spigot davit systems
4 cable attachment gussets
2 Gusset 400 Base
General dimensions:
300x300mm base
412mm tall
Fits 400mm spigot davit systems
2 cable attachment points

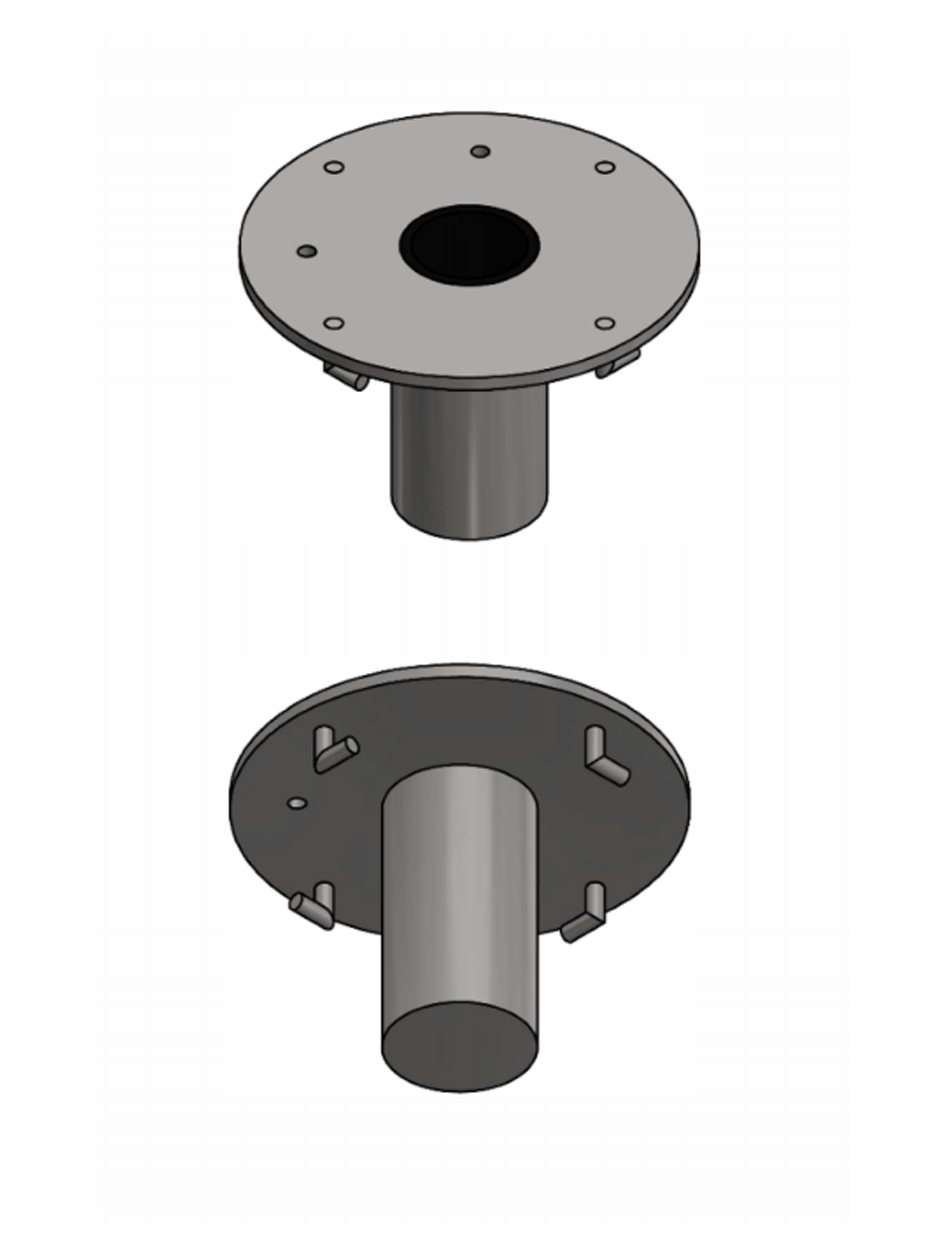

Flush mount cast in davit base
General dimensions:
300mm Dia. Steel plate
200mm depth
Fits 200mm Spigot davit systems
2 M12 Bolt holes for cable attachment
eye-bolts
Cast in davit bases are typically used in for aesthetic purposes where
it may not be suitable to have a bolt on davit base.
They can be covered by paving slabs on balconies
or cladding on roofs
Cast in davit base with extension
General dimensions:
300mm Dia. Steel plate
200mm depth into concrete +
300mm Extension
Fits 200mm and 250mm Spigot davit systems
2 M12 Bolt holes for cable attachment
eye-bolts
Extended cast in davit bases
are typically used where a
thick layer of cladding or
insulation is present overtop
the concrete surface. This may
include “warm roof”
applications as well as green
roofing.
